SCM 5001

Smart Card Milling System

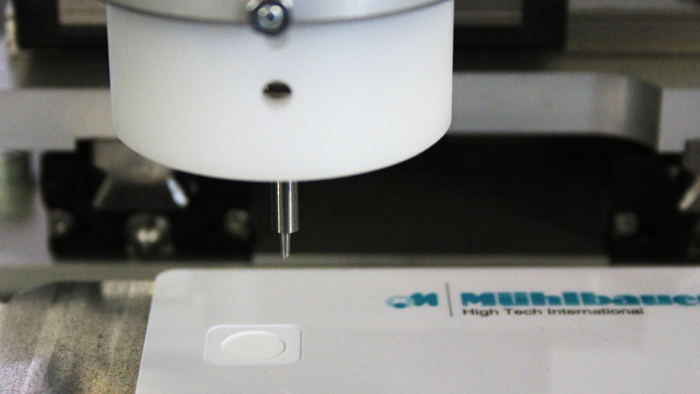

The Smart Card milling system SCM 5001 is used for automatic milling of cavities for IC Modules in plastic cards. The system is perfectly suitable for all contact cards, dual interface cards and multi-SIM cards. It features a highly economical card milling process for medium to large production tasks. Flexibility and modularity are main benefits of this system which provides a variety of options, including dual interface production. With a standard milling configuration, the SCM 5001 reaches a throughput of up to 5,000 cards per hour.

KEY FEATURES

  • Fully automatic milling of cavities for IC Modules into plastic cards
  • Best accuracy, process ability & flexibility due to 2 independent milling stations (6 axis)
  • Operator-friendly, flexible & modular system design
  • Scratch-free handling of card bodies due to vacuum card separation
  • Graphical based milling design programming
  • High accurate milling system with cooling spindle drive
  • Excellent cavity cleaning by efficient suction system
  • Fast milling tool changing & fully automatic calibration
  • INCAPE ready

THROUGHPUT

  • Up to 5,000 UPH; depending on cavity design & material
