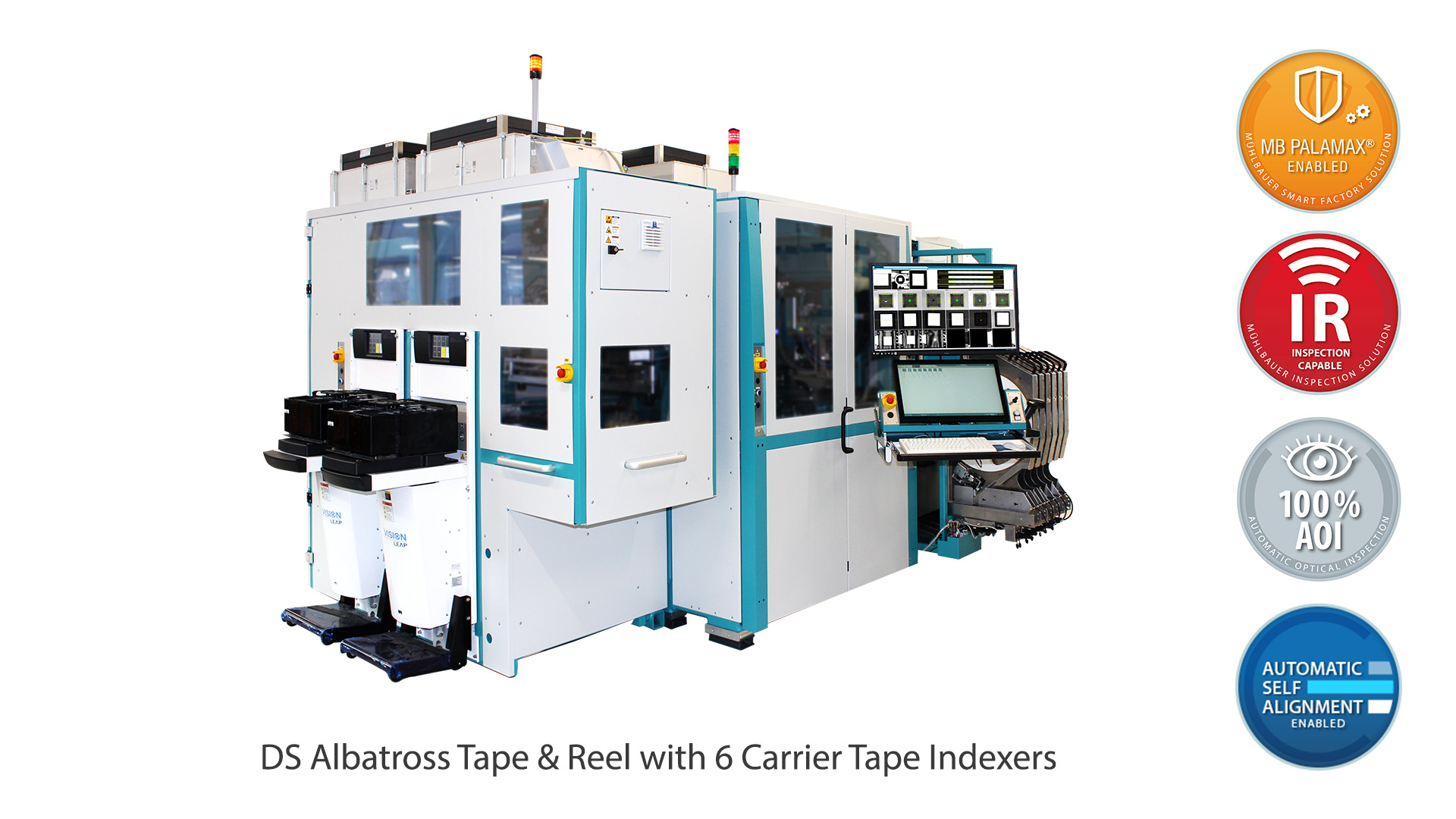

DS Albatross
MÜHLBAUER'S BIG DIE AND MULTI BIN DIE SORTER
The new DS ALBATROSS is the flagship of big die and multi bin sorting I one system. It is equipped with latest Industry 4.0 standards including robotic systems for material handling; automatic tool changer, cleaning stations, multifold input and output load ports and is GEM300 compliant, which is the highest level of semiconductor Software Automation. The special die sorting system includes full AOI (Automatic Optical Inspection) capability, sidewalls inspection and surface inspections to guarantee 100% high-quality output.
KEY FEATURES:
-
Handling of small die such as 0.7mm all the way up to 45x45mm
-
Loadport compliant + OHT/AGV Smart Factory compliant
-
Multiple output capabilities:
-
6x T&R in parallel
-
4x Jedec Tray (Waffle packs)
-
-
Flip or Non-flip capability
-
Placement accuracy ±30µm
-
Automatic Tool changer
BENEFITS:
-
100% full AOI inspection including sidewall
-
Gem300 compliant
-
Online force control and soft landing
TROUGHPUT:
Up to 10.000 dies/hours
