Sheet Collating

Sheet collating is the preparation step for the lamination process. Several sheet layers e.g. the core layer, printed sheets, inlays or antennas are collated, aligned and welded by the welding system.

Mühlbauer's Sheet Collating Systems

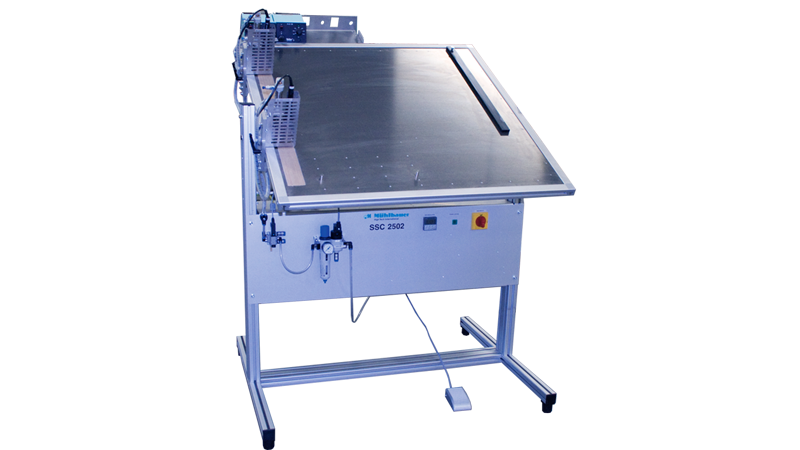

SSC 2502 - SSC 2502/1

  • Semi-automatic operated collating system for individual sheet layers & security layers
  • Suitable for standard collating tasks & security applications
  • Smallest footprint requirements & easy operation
  • Easy set-up & maintenance
  • MB INCAPE ready
  • Up to 100 sheets per hour; depending on material & operator
Erfahren Sie mehr über SSC 2502 - SSC 2502/1

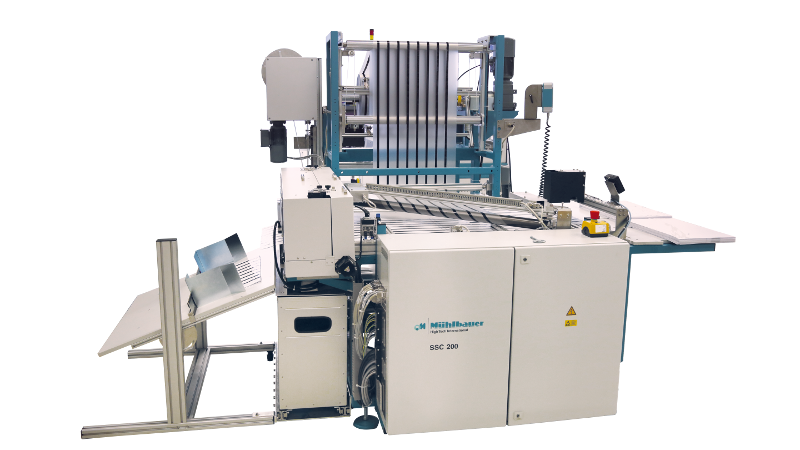

SSC 200

  • Semi-automatic collating system for high volumes
  • Automatic feeding & positioning for overlay from reel
  • Automatic transport & cutting system
  • Automatic welding parameter control
  • Manual feeding & alignment to reference edges of core layers in sheet format
  • Easy set-up & maintenance
  • MB INCAPE ready
  • Up to 400 sheets per hour
Erfahren Sie mehr über SSC 200

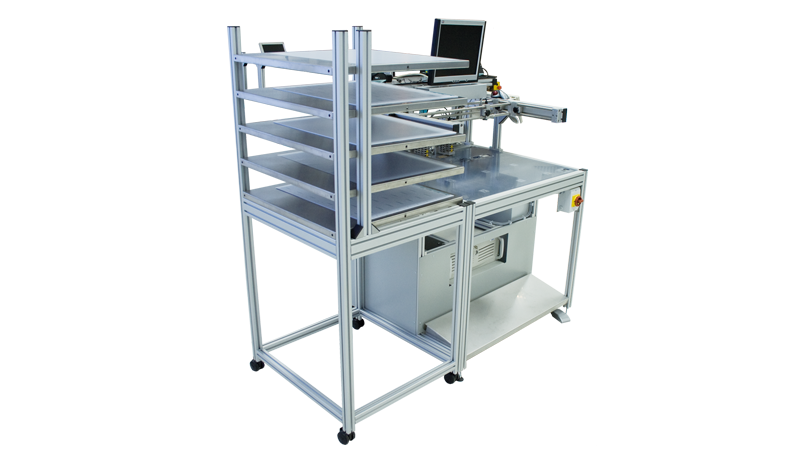

SSC 2700

  • Semi-automatic collating system for individual sheet layers & security layers
  • Suitable for standard collating tasks & security applications requiring vision controlled positioning processes
  • Most precise vision-controlled alignment of sheet layers
  • Smallest footprint requirement & easy operation
  • Each single layer parameter is individually programmable (correct sequence)
  • Material shelf for ergonomic supply of sheets (optional)
  • Programmable welding position, time & temperature
  • Up to 7 different welding positions programmable
  • MB INCAPE ready
  • Up to 100 sheets per hour
Erfahren Sie mehr über SSC 2700

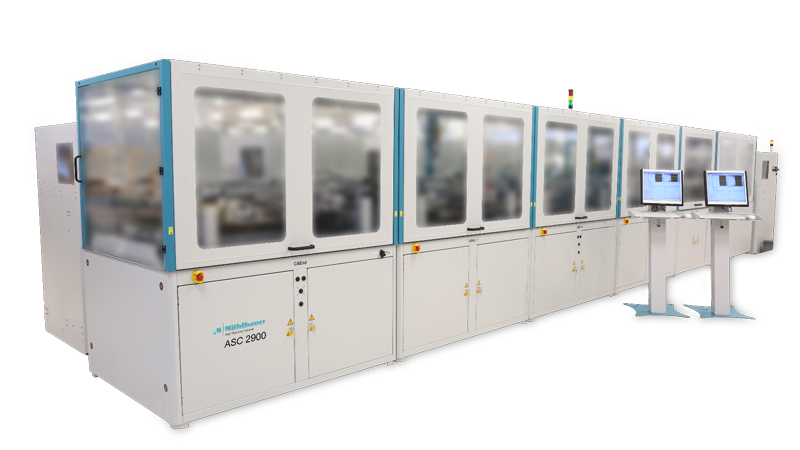

ASC 2900

  • Automatic high-speed sheet collating system
  • Feeding of overlay from reel
  • High-precision alignment by vision systems
  • Proven solution for high-end products like security documents or contactless cards
  • Alignment programmable to print marks, antenna pads, security features or other individual shapes on the layers
  • Sheet-to-sheet handling system for core layers
  • Output of collated & pre-fixed sheet to stacker system
  • Modular design for flexible configuration of individual collating-units (on-site upgrade / extension possible)
  • Up to 7 layers possible
  • MB INCAPE ready
  • Up to 700 sheets per hour
Erfahren Sie mehr über ASC 2900

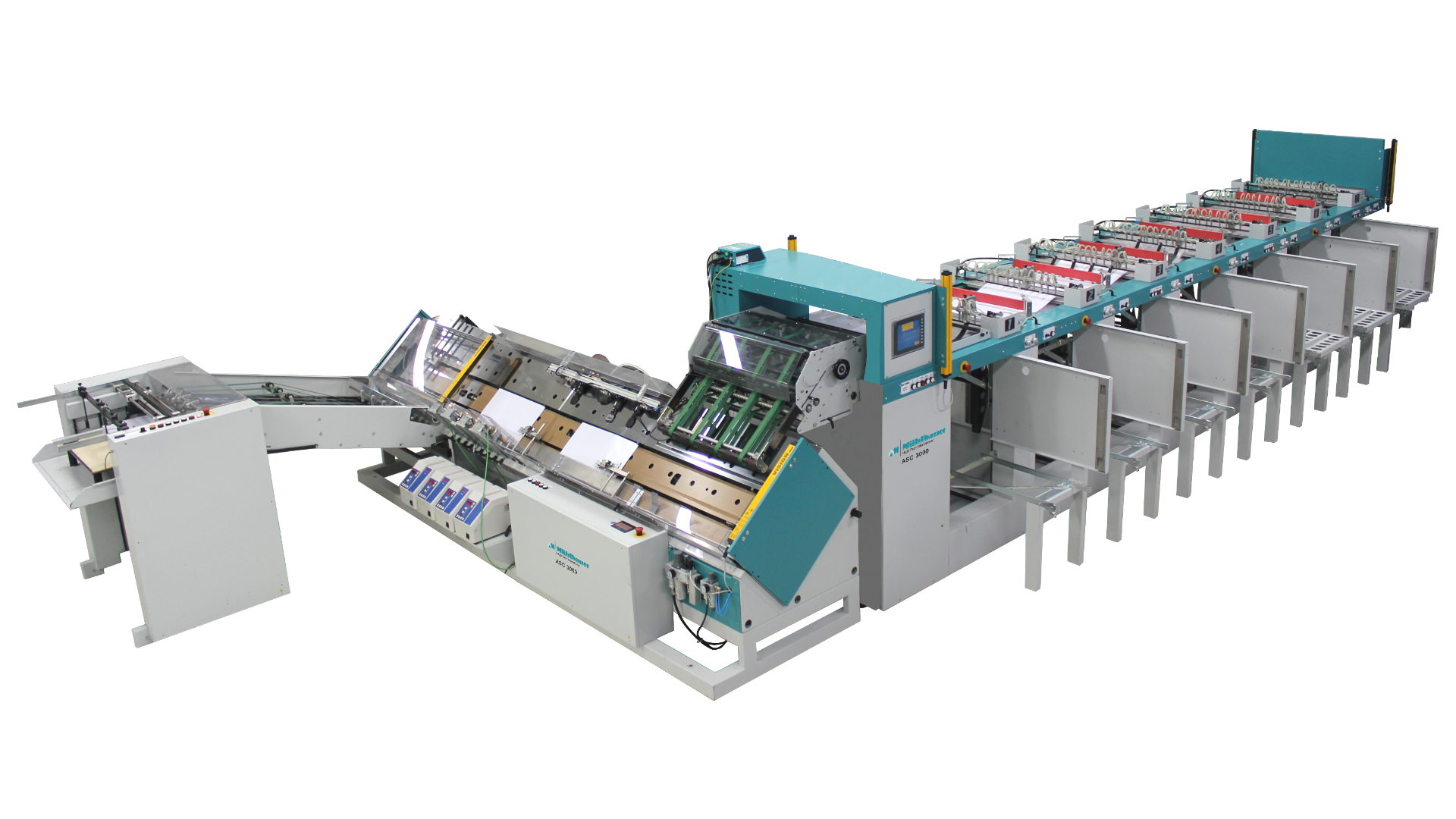

ASC 3000

  • Automatic, high-speed sheet collating system
  • High-precision alignment to edge
  • Sheet-to-sheet handling system for all layers
  • Right or left machine configuration available
  • Input feeding & collating unit (up to 9 stacks possible)
  • MB INCAPE ready
  • Up to 1300 sets per hour
Erfahren Sie mehr über ASC 3000
